REGDOC-3.5.4, Pre-Licensing Review of a Vendor's Reactor Design

Preface

Regulatory document REGDOC-3.5.4, Pre-Licensing Review of a Vendor’s Reactor Design, describes the pre-licensing review process provided by the Canadian Nuclear Safety Commission (CNSC) for assessing a vendor’s reactor design. The review considers the areas of design that relate to reactor safety, security and safeguards.

A pre-licensing review is an optional service provided by the CNSC. The review can be undertaken by a reactor vendor prior to an applicant’s submission of a licence application to the CNSC.

This review can provide early identification and resolution of potential regulatory or technical issues in the design process, particularly those that could result in significant changes to the design or safety analysis. The objective of a pre-licensing review is to increase regulatory certainty while ensuring public safety.

This service does not certify a reactor design, and does not involve the issuance of a licence under the Nuclear Safety and Control Act. It is not required as part of the licensing process for a new nuclear reactor facility. The conclusions of a design review do not bind or otherwise influence decisions made by the Commission, with whom the authority resides to issue licences for nuclear reactor facilities.

REGDOC-3.5.4, Pre-Licensing Review of a Vendor’s Reactor Design, provides guidance information only. No requirements are articulated in this document. In this document, "should" is used to express guidance. "May" is used to express an option, or that which is permissible within the limits of this regulatory document. "Can" is used to express possibility or capability.

Note: In 2013, the CNSC adopted a revised regulatory framework structure with a new system for naming and numbering regulatory documents. This document has been published as part of the CNSC’s initiative to bring regulatory documents that were published before the current framework was adopted into the new system. The requirements and guidance in this document have not changed.

1. Introduction

Paragraph 21(1)(a) of the Nuclear Safety and Control Act (NSCA) gives the Canadian Nuclear Safety Commission (CNSC) the authority to: "enter into arrangements, including an arrangement to provide training, with any person, any department or agency of the Government of Canada or of a province, any regulatory agency or department of a foreign government or any international agency" in order to attain its objectives.

At the request of a vendor, and by entering into a service agreement, the CNSC will undertake a pre-licensing review of a vendor’s reactor design. The terms "reactor" and "reactor design" include all structures, systems and components, as well as vendor design processes and supporting evidence necessary to demonstrate that the non-site specific design is meeting CNSC expectations for design and safety analysis.

The review does not certify a reactor design, and does not involve the issuance of a licence under the NSCA. It is not required as part of the licensing process for a new reactor facility. The conclusions of a design review do not bind or otherwise influence decisions made by the Commission, with whom the authority resides to issue licences for nuclear reactor facilities.

Much of the detailed information resulting from the design review – including the vendor’s submissions of documentation – may be considered commercially confidential, as per the terms of the service agreement. The public will be informed of the high-level outcomes of the review work by the posting of an executive summary of each review report on the CNSC website.

1.1 Purpose and scope

This document describes the pre-licensing review process provided by the CNSC for assessing a vendor’s reactor design. The review considers the areas of design that relate to reactor safety, security and safeguards.

1.2 What is a pre-licensing review?

A pre-licensing review, commonly referred to as a vendor design review, is an optional service that the CNSC provides for the assessment of a vendor’s reactor design. The primary purpose of a vendor design review is to provide feedback to the vendor about how it is addressing Canadian regulatory requirements and CNSC expectations in its design and design activities. The CNSC enters into a service agreement with the vendor that is based on a fixed scope of work.

This review provides the early identification and resolution of potential regulatory or technical issues in the design process, particularly those that could result in significant changes to the design or safety case. The CNSC conducts more detailed reviews of the design and safety case at the time of an application for a licence to construct and an application for a licence to operate.

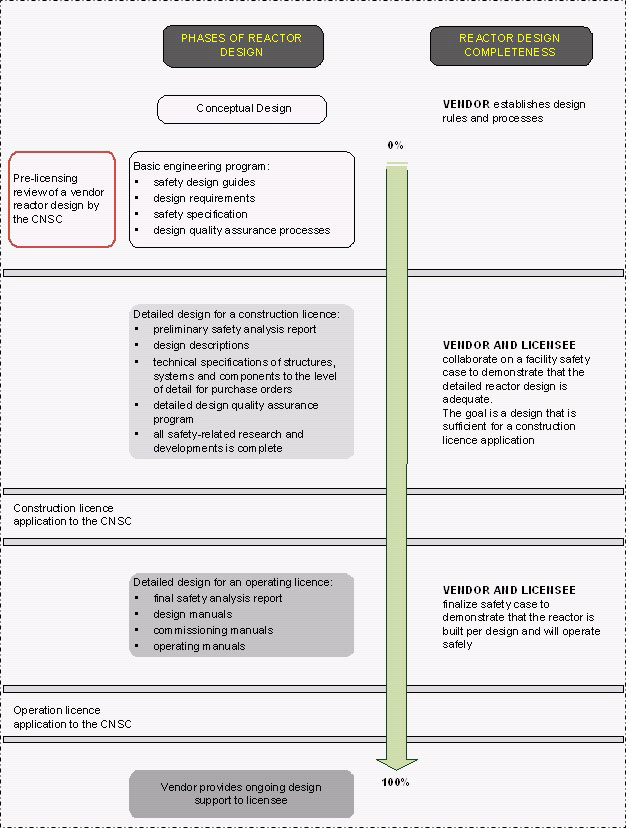

The following figure illustrates the level of design completion that is necessary to support a vendor design review versus the level of design completion that is necessary to support an application for a licence to construct, or a licence to operate a new reactor facility. The licence to prepare site phase is not shown in the diagram because the applicant for a licence to prepare site determines the level of design information required to determine site suitability.

A vendor design review evaluates if:

• the vendor understands Canadian regulatory requirements and expectations
• the design is being developed to comply with the following, as applicable: CNSC regulatory documents REGDOC-2.5.2, Design of Reactor Facilities: Nuclear Power Plants [1], or RD-367, Design of Small Reactor Facilities [2], and applicable regulatory documents and national standards
• a resolution plan exists for any design issues identified in the review

A review considers technical aspects, and does not include considerations such as:

• design costs
• state of completion of the design
• scheduling factors relative to the review of a licence application
• design changes that could be required as a result of future findings

A vendor design review can begin once a vendor has, at a minimum, made reasonable progress in the basic engineering phase of the design. As per figure 1, this means that the basic architecture of systems important to safety has been laid out following the vendor’s reactor design guides and design requirements. The following documents should be approaching a state of completion, such that the vendor is ready to proceed with the detailed design phase in preparation for a utility’s submission of a construction licence application:

• Design guides that contain design philosophies, safety philosophies and rules that designers must follow when performing their design work, including safety requirements such as applicable codes and standards
• Design requirements for systems important to safety that establish such aspects as:
  • minimum performance requirements and reliability targets
  • reflect significant progress made in any safety-related research and development
• The vendor’s overall management system as it applies to the design of structures, systems and components
• Design and safety analysis representative of a preliminary safety analysis report

1.3 Benefits of a vendor design review

The reports that are prepared during a vendor design review provide a significant amount of information that is of benefit to the vendor, applicant and the general public.

1.3.1 Benefits to the vendor

The review provides the vendor with information that can be used when holding discussions with a potential applicant who is considering the vendor’s technology.

A vendor design review can provide further assurance that, along with information contained in RD/GD-369, Licence Application Guide – Licence to Construct a Nuclear Power Plant [3], the vendor has the necessary data to support an applicant in a future application to construct an NPP. For small reactor facilities, most of the information contained in RD/GD-369 is applicable, but may be applied in a graded manner. The depth and breadth of information required in support of an application will depend on the risk and complexity of the facility.

When an applicant approaches the CNSC for a licence, the applicant will be required to demonstrate the adequacy of the design and its associated safety case against Canadian regulatory requirements and CNSC expectations. Preparing submissions for each phase of the vendor design review allows the vendor to plan and prepare for effective discussions with potential applicants who are considering the use of the vendor’s reactor technology.

The vendor design review gives the vendor early feedback on the use of new or novel design features and approaches. These may be new materials for structures, systems and components, or engineering standards and methodologies that may not have been previously employed in Canada.

The review also offers the vendor early notification of potential fundamental barriers to licensing. Within the review process, the vendor is able to identify resolution paths for any issues before an applicant seeks to obtain a licence to construct or licence to operate. By being aware of such resolution paths, both the vendor and the applicant can have reasonable confidence that the issue can be resolved in a reasonable timeframe, in order to keep within the expected licensing schedule.

A vendor design review contributes to regulatory certainty by:

• providing clear and early feedback to the vendor on Canadian regulatory requirements and how well the design meets these requirements
• identifying potential licensing and technical (safety) issues early on, thereby providing the vendor time to resolve issues before they become barriers to licensing; this is particularly important for issues that could result in significant changes to the design or safety analysis
• enabling CNSC staff to become familiar with the design prior to the receipt of a licence application, thereby reducing the amount of time needed to assess the design during the review of the applications for the licences to construct and operate

1.3.2 Benefits to the applicant

The CNSC encourages potential applicants to have early and ongoing dialogue with vendors to discuss and resolve potential regulatory issues when considering technologies for proposed nuclear reactor facilities.

Vendor design reviews allow the regulator to become informed of the design, thus facilitating future licence application reviews. The resultant review information obtained throughout the review phases may add significantly to the understanding of both the technology and any of its associated issues that need to be resolved prior to, and during, the licensing process.

The CNSC expects a future applicant to be highly familiar with the technology it will eventually purchase for a proposed nuclear reactor facility – that is, to be a "smart buyer". Under the NSCA, the applicant is ultimately accountable for licensed activities, and will be required to demonstrate the adequacy of the design and its associated safety case against Canadian regulatory requirements and CNSC expectations. Potential applicants are encouraged to speak with vendors early on in the licensing process to discuss and resolve potential regulatory issues.

1.3.3 Benefits to the public

The vendor design review provides the public with a measure of early assurance that a new reactor technology being proposed for construction and operation in Canada will meet Canadian regulatory requirements.

By performing an early review of key aspects of a reactor design and the vendor’s organization, the public can be assured that:

• the vendor understands Canadian regulatory requirements and CNSC expectations
• the design will meet the requirements contained in CNSC regulatory documents REGDOC 2.5.2 or RD 367 (as applicable to the proposal) and related regulatory documents and standards
• the vendor is actively seeking the resolution of any design issues identified in the review

These three assurances increase the level of regulatory certainty and contribute to public safety.

1.4 CNSC use of information from other nuclear regulatory jurisdictions

If a vendor has had its reactor design either reviewed or certified by a nuclear regulator from another country and, as a result, has accumulated a certain amount of regulatory feedback, the CNSC would consider such material in the vendor design review, under the following conditions:

• The vendor would be responsible for obtaining and providing the reviewed or certified information to the CNSC, as part of the design review submittals.
• The vendor would explain how that information demonstrates that the design will meet Canadian requirements.
• The CNSC would conduct its own assessment in light of its regulatory framework
• The CNSC would use the information submitted to the extent that the information is compatible with the CNSC review process.

2. Vendor Design Review

The vendor design review is divided into three phases, each requiring increasingly detailed technical information.

Phase 1 review – Intent to comply with regulatory requirements: CNSC staff assess the information submitted in support of the vendor’s design and determine if, at a general level, the vendor design and design processes are demonstrating implementation of CNSC design requirements (for new nuclear power plants as specified in REGDOC-2.5.2, and for small reactor facilities in RD-367), and related regulatory requirements.

Phase 2 review – Pre-licensing assessment: This phase goes into further detail, with a focus on identifying if any potential fundamental barriers to licensing exist or are emerging with respect to the reactor’s design.

Phase 3 review – Pre-construction follow-up: In this phase, the vendor can choose to follow up on one or more focus areas covered in phases 1 and 2 against CNSC requirements pertaining to a licence to construct. For those areas, the vendor’s anticipated goal is to avoid a detailed revisit by the CNSC during the review of the construction licence application.

Phase 1 and 2 reviews have 19 review focus areas, which represent key areas of importance for a future construction licence. The Phase 3 review is tailored on a case by case basis. See appendix A for detailed information on the review focus areas.

3. What is a fundamental barrier to licensing?

When reviewing a vendor’s reactor design, CNSC staff assess aspects of the design related to safety, security and safeguards, in order to identify potential issues with respect to licensing and technical requirements. Areas that fail to comply with Canadian regulatory requirements or to address CNSC design expectations for new reactor facilities are identified. If not corrected, the issues could become fundamental barriers to licensing.

A fundamental barrier is a shortcoming in the design or the design process that, if not corrected, could have the potential for significant risk to the public, workers or the environment. The barrier is considered fundamental when there is no clear and adequate path to resolution of a significant safety issue. A barrier would also be considered fundamental if there are significant uncertainties associated with the proposed resolution plan, or if the timeline is such that the issue may not be resolved at the time an application for a licence to construct is submitted to the CNSC.

From a design perspective, the following aspects present barriers in the licensing process:

• Non-compliance with Canadian regulatory requirements
• Unjustified non-conformance with Canadian regulatory requirements, including those in the regulatory document REGDOC-2.5.2 or RD-367, and other applicable regulatory documents and national standards for design and analysis
• Unjustified non-compliance with design and safety analysis quality assurance standards and procedures
• A design that does not address known issues of safety significance (i.e., the design has not taken into account resolution of safety concerns from past regulatory reviews)
• A design that does not meet the "as low as reasonably achievable" (ALARA) principle
• Unproven engineering practices for new or innovative design features (i.e., not adequately supported by analysis, research and development, or both)
• A design introduces unacceptable operational complexity in order to meet operation compliance (i.e., to meet regulatory requirements, the system or technology would be so complicated as to introduce complexities that may cause other events due to human factors)

4. Objectives and Scope of a Vendor Design Review

4.1 Focus areas

Nineteen focus areas are reviewed during phases 1 and 2 of a design review and include topics of significant safety importance to a design so that any identified issues can be addressed by the vendor early in the design process. The vendor may propose additional focus areas that are specific to the reactor design.

The 19 focus areas are:

1. General plant description, defence in depth, safety goals and objectives, dose acceptance criteria
2. Classification of structures systems, and components
3. Reactor core nuclear design
4. Fuel design and qualification
5. Control system and facilities:
   • Main control systems
   • Instrumentation and control
   • Control facilities
   • Emergency power system(s)
6. Means of reactor shutdown
7. Emergency core cooling and emergency heat removal systems
8. Containment/confinement and safety-important civil structures
9. Beyond-design-basis accidents (BDBAs) and severe accidents (SA) prevention and mitigation
10. Safety analysis (deterministic safety analysis, probabilistic safety analysis) and internal and external hazards
11. Pressure boundary design
12. Fire protection
13. Radiation protection
14. Out-of-core criticality
15. Robustness, safeguards and security
16. Vendor research and development program
17. Management system of design process and quality assurance in design and safety analysis
18. Human factors
19. Incorporation of decommissioning in design considerations

Appendix A provides a description of the objectives and scope for each focus area.

4.2 Phase 1 of the vendor design review

A vendor can initiate a Phase 1 review once the conceptual design is complete and the basic engineering program is either at an advanced stage or completed, since high-level design information would be required in support of the review.

As part of Phase 1, CNSC staff review the submitted documentation against key areas of either regulatory document REGDOC-2.5.2 or RD-367 (whichever is applicable to the reactor design proposed by the vendor), along with any other related regulatory requirements. This review is conducted to assess if the vendor design and design processes demonstrate that Canadian regulatory requirements and expectations for design and safety analysis are being implemented.

The vendor is expected to demonstrate that the design intent meets the requirements of REGDOC-2.5.2 or RD-367 and related regulatory requirements, through the description of intended programs.

4.2.1 Phase 1 focus areas and information required from the vendor

For each of the focus areas, the following information is required to demonstrate that the design meets the Phase 1 objectives:

• Demonstration of compliance with relevant sections of REGDOC-2.5.2, or RD-367, and related regulatory requirements
• Safety analysis at a sufficient level to demonstrate the adequacy of the design concepts
• Design information, such as design guides, design requirements, design descriptions and design manuals
• Information in support of new or novel designs or approaches, when used
• Path forward for resolving any outstanding safety issues, including research and development efforts

4.2.2 Review criteria

For each of the review focus areas, the submissions are assessed using the requirements and expectations relevant to the individual review focus area, including:

• Nuclear Safety and Control Act
• CNSC regulations:
  • General Nuclear Safety and Control Regulations
  • Class I Nuclear Facilities Regulations
  • Radiation Protection Regulations
  • Nuclear Security Regulations
• CNSC regulatory documents:
  • REGDOC-2.5.2, Design of Reactor Facilities: Nuclear Power Plants
  • RD-367, Design of Small Reactors
  • REGDOC-2.4.1, Deterministic Safety Analysis
  • REGDOC-2.4.2, Probabilistic Safety Assessment (PSA) for Nuclear Power Plants
  • G-129, Keeping Radiation Exposures and Doses "As Low As Reasonably Achievable (ALARA)"
  • REGDOC-2.3.2, Accident Management, Version 2
  • G-219, Decommissioning Planning for Licensed Activities
• CSA Group and other national standards:
  • CSA N285.0-08/N285.6 Series-08, General requirements for pressure-retaining systems and components in CANDU nuclear power plants / Material Standards for reactor components for CANDU nuclear power plants
  • CSA N287.1 14 (2014), General requirements for concrete containment structures for nuclear power plants
  • CSA N293-12, Fire protection for nuclear power plants
  • CSA N286 12, Management system requirements for nuclear facilities
  • CSA N289.1, General requirements for seismic design and qualification of CANDU nuclear power plants
  • NBCC 53301S, The National Building Code of Canada
  • NBCC 47667, The National Fire Code of Canada

The vendor may propose the use of alternate codes and standards; however, it must provide information that outlines the basis of how the alternate standards are broadly equivalent to Canadian codes and standards. This gap analysis is integral to the vendor demonstrating its understanding of Canadian requirements.

Initial consideration is also given to the extent to which generic or outstanding safety issues have been resolved, and to whether the knowledge base for new or innovative features in the design has been established.

4.2.3 Project management information

Phase 1 activities are captured in an overall vendor design review project plan, which falls under the service agreement.

A Phase 1 vendor design review typically takes eight months to one year to complete, in a time frame agreed to by both the vendor and CNSC. The estimated effort for this review phase is approximately 5,000 hours; however, additional effort may be required depending on how well novel designs or approaches are supported, or if the vendor requests that additional review focus areas be covered in the service agreement.

4.2.4 Project deliverables

At the end of the review period, the CNSC will deliver a Phase 1 summary report to the vendor, containing findings for each review focus area and the bases for those findings.

For any focus areas where the review indicates the need for additional work by the vendor to demonstrate intent to meet the requirements of REGDOC-2.5.2 or RD-367, the CNSC will issue a statement identifying any gaps. The vendor is responsible for identifying how it will address any gaps.

The Phase 1 report is treated as commercially sensitive information, and is not made available to the public. However, as part of the Phase 1 report, the CNSC provides an executive summary, which is posted on its website, to communicate the high-level results of the review to the public and other stakeholders.

4.3 Phase 2 of the vendor design review

A vendor can initiate a Phase 2 review once the design’s basic engineering program is either well under way or completed. The results of a Phase 2 review assist the vendor’s development of a preliminary safety analysis report, as part of the preparations in support of an applicant for an eventual (site-specific) application for a licence to construct.

This phase focuses on identifying if any potential fundamental barriers to licensing exist or are emerging with respect to the reactor design. Phase 2 serves to give the CNSC a significant level of assurance that the vendor has taken into account CNSC design requirements. Consideration is also given to the extent to which generic or outstanding safety issues have been resolved. In addition, CNSC staff conduct an audit of the design process, to verify that it has been implemented correctly and in accordance with the vendor’s policies and procedures.

For the Phase 2 review, particular attention is paid to the review focus areas where there are new design features or approaches used in the design, to ensure that the vendor has performed or planned testing and analysis work to support the adequacy of the design.

In Phase 2 the vendor is also expected to provide follow-up information to demonstrate how it is resolving any issues identified during Phase 1.

4.3.1 Phase 2 focus areas and information required from the vendor

The Phase 2 review also uses the 19 review focus areas; however, more detailed information is required for each of the focus areas to demonstrate that the reactor design and supporting analyses meet the Phase 2 objectives, namely that the vendor’s design and safety activities are meeting Canadian requirements.

4.3.2 Review criteria

The review criteria used for Phase 2 remain the same as those used in Phase 1. However, this phase goes into further detail, with a focus on identifying if any potential fundamental barriers to licensing exist or are emerging with respect to the reactor design.

4.3.3 Project management information

Phase 2 activities are captured in an overall vendor design review project plan which falls under the service agreement.

A Phase 2 vendor design review typically takes 12 to 18 months to complete, along a time frame agreed to by both the vendor and CNSC. The estimated effort for the review is 9,500 hours, but additional effort may be required, depending on how well novel designs or approaches are supported, or if the vendor requests that additional topics be covered in the service agreement.

4.3.4 Project deliverables

At the end of the Phase 2 review period, the CNSC delivers a Phase 2 summary report to the vendor that contains findings for each review focus areas and the bases for those findings.

For any focus areas that require the vendor to perform additional work to demonstrate the design will meet CNSC design requirements, the CNSC will issue the following statement.

"This statement is subject to the successful completion of [name of vendor and reactor]’s planned activities, in particular related to: [list of review focus areas]"

The Phase 2 report is treated as commercially sensitive information, and is not made available to the public by the CNSC. However, the CNSC provides a Phase 2 report executive summary, which is posted on its website, to communicate the high-level results of the review to the public and other stakeholders.

4.4 Phase 3 of the vendor design review – Pre-construction follow-up

Phase 3 is initiated by a vendor who has already completed Phase 1 and 2. Phase 3 should not be initiated by a vendor until the design’s (non-site-specific) detailed engineering program is under way. This generally occurs when the vendor is supporting a licensee who is preparing an application for a licence to construct.

In this phase, the vendor may choose to follow up on one or more focus areas covered in Phase 1 and 2 against CNSC requirements pertaining to a licence to construct. The vendor may also seek to confirm whether more specific aspects of the design and related activities will meet the design and safety analysis criteria contained in:

• REGDOC-2.5.2, Design of Reactor Facilities: Nuclear Power Plants, or RD 367, Design of Small Reactor Facilities, as applicable
• REGDOC-2.4.1, Deterministic Safety Analysis, as applicable

4.4.1 Focus areas and information required from the vendor

For Phase 3, the vendor supplies any additional information necessary for the follow-up discussions to proceed. This information, targeting specific focus areas, is agreed upon between both parties before Phase 3 work begins.

4.4.2 Review criteria

Phase 3 review criteria are found in CNSC documents REGDOC-2.5.2, RD-367 and REGDOC-2.4.1.

4.4.3 Project management information

Phase 3 activities are generally agreed upon by both parties at the end of Phase 2, and captured in an amendment to the overall vendor design review project plan. At this time, the service agreement is also amended to add the additional scope of work, timelines and budget.

Phase 3 vendor design reviews vary in scope and depth from vendor to vendor. The time frame for a Phase 3 review is tailored to the vendor on a case-by-case basis. The review goes into considerably more depth (in line with the level of review performed during a construction licence review) the vendor should be aware that Phase 3 review may be a multi-year exercise, with a cost commensurate with the scope and depth of review.

4.4.4 Project deliverables

At the end of the Phase 3 review period, the CNSC delivers a Phase 3 summary report to the vendor. The report contains either a summary of discussions or any additional findings for each focus area, along with the bases for those findings.

The Phase 3 report is treated as commercially sensitive information, and is not made available to the public. As part of the Phase 3 report, the CNSC provides an executive summary, which is posted on its website, to communicate the results to the public and other stakeholders.

Appendix A: Focus Review Areas

The following table describes the 19 review focus areas used in the assessment of a vendor’s reactor design. These focus areas are not all-inclusive of a full design review, but are representative of key areas of importance to a vendor in a future application to construct a nuclear reactor facility . The scope and objectives listed are identical for both Phase 1 and Phase 2; however, the Phase 2 review goes into considerably more depth, in order to confirm that the vendor is applying the design intent shown in Phase 1.

Focus area	Objectives and review scope
1 General plant description, defence in depth, safety goals and objectives, dose acceptance criteria	Objectives To understand the overall layout of the reactor and general operation of key systems important to safety To determine, with reasonable confidence, if the provisions made in the design are meeting CNSC expectations and regulatory requirements as they pertain to defence in depth, safety goals and objectives, and dose acceptance criteria Review scope General reactor design description and layout (operation of key systems important to safety) How defence-in-depth principles are being applied in the design such that safety objectives and goals (dose acceptance criteria, and safety goals) will be met in the design for all plant states from normal operation to beyond-design-basis accidents (BDBAs)
2 Classification of structures systems, and components (SSCs)	Objectives To determine, with reasonable confidence, if the provisions made in the design, as it is evolving, are meeting CNSC expectations and regulatory requirements as they pertain to safety classification of SSCs and requirements for other specific classifications (e.g., seismic and environmental qualification) Review scope Safety classification principles, approach and acceptance criteria How safety classification is tied to codes and standards (e.g. pressure boundary, seismic, etc.) Review of safety classification of example SSCs
3 Reactor core nuclear design	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to reactor core nuclear design To confirm that the design, as it is evolving, is meeting CNSC expectations for reactor core nuclear design To confirm that the vendor has, with a reasonable level of assurance, demonstrated that the safety principles, such as inherent safety features, single failure criterion and defence in depth, would be met by the core design Review scope Description of the physical core design (geometry, materials, etc.) Models and calculation methods used including uncertainties analysis Tools used for physics design and analysis including toolset validation and verification to support the design Operation limits and conditions for core, core instrumentation and control. and nuclear fuel Physics and reactivity coefficients including effects or power coefficient of reactivity Core response in accident analysis Power control (to ensure compliance with the design requirements, specifically on linear element rating), including aspects of loss of reactivity control Support for research and development programs
4 Fuel design and qualification	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to fuel design To confirm that fuel design is addressing CNSC expectations related to fuel design including fuel performance, operation/safety limits, fuel handling and storage aspects Review scope Mechanical and thermal hydraulic design of fuel elements and assemblies (for example, geometry, materials) Overall programs of the qualification of the fuel design for normal operations and postulated accidents Manufacturing aspects of the fuel design, including material properties The database in support of normal operation and postulated accidents (including assessments for the qualification of fission gas models and plenum volume design) Design tools (for example, computer codes) used, including verification and validation Uncertainty analysis Safety limits for fuel Analyses of fuel responses to accidents Fuel interaction with other reactor components for all plant states (from normal operation to BDBAs) and the reactor coolant (e.g., chemistry) Operation and safety limits and conditions for fuel High-level description of fuel handling aspects System(s) for detecting defect fuel Storage capacity for fresh and irradiated fuel Supporting research and development programs

Focus area	Objectives and review scope
5 Control system and facilities: a) main control systems b) instrumentation and control c) control facilities d) emergency power system(s)	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to systems to control the operation of structures systems and components important to safety To confirm the design, as it is evolving, is meeting CNSC expectations for instrumentation and control systems and their deployment Review scope Provisions made in design for overall reactor control including: actual design details and descriptions of control systems that will monitor and control structures systems and components important to safety vendor’s description of interactions with other control systems, electrical systems and supporting systems (e.g., instrument air, HVAC) Description of main and auxiliary control facilities, including emergency support centre(s) Description how control systems meet requirements of levels 1 and 2 of defence in depth Description of how control system design is maintaining functional separation between process systems and safety systems and ensuring sufficient redundancy and diversity Description of provisions made in design for reactor regulation (control of reactor) Capability to mitigate anticipated operational occurrences. and those not Mitigated by the reactor control/protection system design verification and qualification under normal operation and anticipated operational occurrences conditions Operation limits and conditions in accordance with reactor control/protection system failure
6 Means of reactor shutdown	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to the provisions made in the design of "shutdown means" To confirm that the design, as it is evolving, is meeting CNSC expectations for reactor shutdown means Review scope Design and description of methods to shut down the reactor, including: shutdown logic software and hardware trip parameters and trip set points actuation provisions materials physics characteristics of "poison" materials independence and reliability physical layout human factors aspects or interaction with operator(s) in the main control room as well as secondary control facilities Physics aspects like time effectiveness, reactivity worth, single failure criterion including failure of one the most "heavy" element, short and long term effectiveness The design’s sufficiency to cover level 3 defence in depth The dispositioning of trip coverage, including how trip set points are utilized and the rationale for the number of trip parameters and support systems/parameters The use of redundancy, diversity and reliability to ensure means of shutdown is always available when needed Description of the various guaranteed shutdown states to be used by the design How separation will be maintained between reactor control/protection systems and other protection, control and regulating systems Interface between the means of shutdown and other reactor components such as the reactor coolant and moderator The effects of chemistry (if applicable) Manufacturing aspects of devices that will be used for shutdown
7 Emergency core cooling and emergency heat removal systems	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to emergency core cooling and emergency heat removal systems To confirm that the design, as it is evolving, is meeting CNSC expectations for emergency core cooling system(s) and emergency heat removal systems Review scope For emergency core cooling systems (ECC), a description of: The basic design of emergency core cooling system(s) including how this system will be a barrier to core damage Support and interfacing systems to the ECC system(s) ECC’s chief function and the most challenging event How design requirements intend to consider proven designs, operating experience and plant layout factors This review also examines codes and standards that the vendor proposes to use for the design of ECC systems. For emergency heat removal systems, a description of: The basic design of emergency heat removal systems including how these systems will be a barrier to core or pressure boundary damage Support and interfacing systems to the emergency heat removal systems Each emergency heat removal system’s chief function Analysis of the most challenging events these systems will mitigate against How design requirements intend to consider proven designs, operating experience and reactor layout factors This review also examines codes and standards that the vendor proposes to use for the design of emergency heat removal systems

Focus area	Objectives and review scope
8 Containment /confinement and safety-important civil structures	Objectives To confirm that the vendor has understood and interpreted correctly the CNSC’s expectations for design of containment/confinement and mitigating/complementary features that cover the full spectrum of reactor operating conditions and accident conditions. This includes beyond-design-basis accidents and severe accidents To confirm that the design, as it is evolving, is meeting CNSC expectations for the performance and design of the containment/confinement structures To assess the scope and completeness of containment design compliance with CNSC regulatory requirements (REGDOC-2.5.2 or RD-367) Review scope description of containment/confinement structures & systems, including descriptions of: system actuation (trip parameters by list and numbers) instrumentation and control logic (and related software) major equipment trip parameters materials physical and chemical properties of cooling substances (e.g., light water with some quality, demineralised, raw) redundancy independence and separation reliability physical layout human factors aspects or interaction with operator(s) in main control room as well as secondary control facilities The requirements for containment / confinement structures including external hazards (e.g., seismic and environmental qualification) The design and analysis tools including tool verification and validation and uncertainty analysis. this should include tools and methods to perform deterministic and probabilistic safety analyses of severe accidents The methods used to prevent/mitigate containment/confinement bypass Means of control of radiation release The description of severe accident mitigation and management program The description of complementary design features Review of other civil structures important to safety: purpose, functional and structural characteristics, safety class safety and safety support systems radioactive and dangerous substances other systems seismic and environmental qualification external hazards robustness
9 Beyond design basis accidents (BDBAs) and severe accidents (SA) – prevention and mitigation	Objectives To confirm that the vendor understands CNSC expectations for the provision of severe accident prevention and mitigation in the design To confirm that the design, as it is evolving, is meeting CNSC expectations for provisions for severe accident prevention and mitigation To confirm containment provisions for severe accidents are accounted for with reasonable assurance Review scope The criteria for selecting the BDBAs and severe accident scenarios. Description of analysis (computer codes) tools used, including verification and validation Deterministic analyses for few (2–3) typical severe accident scenarios and discussion of severe accident progression Descriptions of: reactor systems and equipment that will be used for mitigation of severe accidents and the levels of confidence that such equipment will perform their functions any complementary design features and of the barriers to arrest progression of a severe accident potential challenges to containment integrity (such as steam explosions, MCCI, burns of combustible gases, over-pressurization) and of the containment design features to ensure that containment meets performance criteria in REGDOC-2.5.2 during severe accidents instrumentation that will be used for monitoring of radiation and safety critical parameters and for severe accident management measures that will be in place to avoid re-criticality of core materials Provisions for radiological shielding Completed, ongoing and future research and development efforts in this focus area including timelines for completion and a description of experimental facilities, where applicable
10 Safety analysis: deterministic safety analysis probabilistic safety analysis internal and external hazards	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to the safety analysis submitted for design To confirm that the design, as it is evolving, is meeting CNSC expectations for probabilistic safety assessment (levels 1 and 2) and deterministic safety analysis Review scope The process for deterministic safety analysis and progress for the design The level 1 and 2 probabilistic safety analysis The process for hazards analysis (e.g., accounting of internal flooding and fire in probabilistic safety analysis, and seismic and other external hazards, including tornado protection), as well as progress and results for the design

Focus area	Objectives and review scope
11 Pressure boundary design	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to the pressure boundary design To confirm that the design, as it is evolving, is meeting CNSC expectations for pressure boundary design Review scope General design approach to pressure boundary design Pressure boundary design for reactor coolant system and safety/safety support systems General approach to overpressure protection, including systems containing radioactivity Reactor coolant system overpressure protection Accounting of dependent pressure boundary failure (e.g., wiping effect)
12 Fire protection	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to the design for fire protection To confirm that the design, as it is evolving, is meeting CNSC expectations for design for fire protection Review scope General design approach and strategy for fire protection, including design requirements for such things as fire protection systems (including detection and suppression) Review of structural aspects of fire protection, such as fire resistance of walls and doors for fire compartments containing safety and safety-important systems Description of the fire protection measures being implemented inside confinement and containment Strategy and measures for alerting staff of fire events or conditions that may potentially trigger a fire event (e.g., annunciations, high-temperature alarms for potential ignition sources) Strategy and measures for control of fire protection systems How human factors are considered in design for fire protection Description of how fire protection systems interface with other systems, including inter-unit interfaces, where common systems are shared
13 Radiation protection	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to the design for radiation protection To confirm that the design, as it is evolving, is meeting CNSC expectations for provisions for radiation protection Review scope The radiation protection objectives, design expectations and design requirements for the design Description of how the "as low as reasonably achievable" (ALARA) principle is being implemented in design, including description of radiological zones and proposed control of personnel access to different zones Dose description for different groups, both onsite and offsite, for a generic reactor design Radiation monitoring process and instrumentation proposed for normal operation, AOOs and DBAs General description of radiation protection provisions in the design of the facility to be used for radioactive waste handling/processing/storage (taking into account anticipated quantities of radioactive waste (annual, lifetime) Descriptions of evacuation routes/plans for plant workers
14 Out-of-core criticality	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to the design for prevention of out-of-core criticality To confirm that the design, as it is evolving, is meeting CNSC expectations for provisions for prevention of out-of-core criticality Review scope The objectives, design expectations and design requirements for the prevention of out-of-core criticality Description of provisions for prevention of out-of-core criticality in the design, including spent fuel storage, storage of fresh fuel, in-plant and ex-plant transportation of fuel

Focus area	Objectives and review scope
15 Robustness, safeguards and security	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to the provision of robustness, security and safeguards in the design To confirm that the design, as it is evolving, is meeting CNSC expectations for the provision of robustness, security and safeguards in the design Review scope The objectives, design expectations and design requirements for building and system robustness against external events or threats, including control of personnel access to structures, systems and components (particularly control rooms) The objectives, design expectations and design requirements for security and safeguards, including provisions for cyber-security
16 Vendor research and development program	Objectives To assess the vendor’s overall research and development (R&D) program in terms of: program governance and controls overall program scope and depth (particularly in areas of novel design) how well the program will support the design’s safety case, should it be selected for construction by a licence applicant if design gaps will be resolved in a timely manner, in order to meet regulatory requirements, should the design be selected for construction (e.g., clarify "grey" design areas, decrease uncertainties) how continuing R&D efforts would support licensees, once the design is built and is being operated Review scope The overall R&D program High-level description of all R&D underpinning the design, including any research facilities that the research and development is/will be dependent on (including R&D facilities external to the vendor) Testing and qualification programs in support of the design Description of any novel design tools (such as computer codes), including verification and validation and uncertainties assessments
17 Management system of design process and quality assurance in design and safety analysis	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to the design control measures applied to the reactor design and safety analysis To confirm that the design is evolving under controlled design measures that includes a confirmation of the adequacy of the vendor’s design control measures are consistent with CNSC expectations (CNSC Phase 2 audit) Review scope The description of how the vendor conducts design management (including the integration of R&D results into the design) The design control measures, and whether they are consistent with the requirements of CSA N286-12, Management system requirements for nuclear facilities, and REGDOC-2.5.2, Design of Reactor Facilities: Nuclear Power Plants The process for incorporating into the design the capability to manufacture, construct, operate and maintain the reactor The process for incorporating industry operating experience into the design The process for establishing and maintaining configuration management including information control and change control
18 Human factors	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to the provision of human factors in the design To confirm that the design, as it is evolving, is meeting CNSC expectations for the provision of human factors in the design, and includes an examination of how human factors aspects of the design are in conformance with CNSC design expectations Review scope The general principles regarding implementation of human factors in the design The human factors engineering program, and how it is integrated into overall design activities How human factors considerations are incorporated into key operator and maintainer interfaces including: the plant main control room(s) secondary control area(s) emergency support centre field interfaces important to safety
19 Incorporation of decommissioning in design considerations	Objectives To confirm that the vendor understands CNSC expectations and regulatory requirements as they pertain to the design provisions concerning future decommissioning at the end of the reactor’s service life To confirm that the design, as it is evolving, is considering future decommissioning activities in the design, in order to minimize worker dose, effects on the environment from decommissioning activities and radiological waste Review scope The general principles regarding implementation of decommissioning consideration early in the design (conducted against OECD document NEA-6833, Decommissioning Considerations for New Nuclear Power Plants) The high-level description of how the design would be decommissioned at end of life A description of proposed decommissioning techniques and end state for major components, particularly associated with the reactor systems and interfacing systems that could become contaminated over the life of the reactor facility A general description of amount of radioactive waste anticipated as a result of decommissioning including the mid-life refurbishment or planned replacement of major structures, systems and components during the reactor’s service life.

Glossary

accident
Any unintended event (including operating errors, equipment failures or other mishaps), the consequences or potential consequences of which are not negligible from the point of view of protection or safety.
For the purposes of this document, accidents include design-basis accidents and beyond-design-basis accidents. Accidents exclude anticipated operational occurrences, which have negligible consequences from the perspective of protection or safety.

accident conditions
Deviations from normal operations more severe than anticipated operational occurrences, including design-basis accidents and beyond-design-basis accidents.

accident management
The taking of a set of actions during the evolution of a beyond-design-basis accident to:

• prevent the escalation of the event into a severe accident
• mitigate the consequences of a severe accident
• achieve a long term safe stable state

As Low As Reasonably Achievable (ALARA) – social and economic factors taken into account
A fundamental principle of radiation protection whereby the protective measures implemented to minimize radiation exposure are optimized with respect to the level of risk reduction and the cost of implementation.

Beyond-design-basis accident (BDBA)
Accident conditions less frequent and more severe than a design-basis accident. A BDBA may or may not involve core degradation.

design
In context of a review of a vendor’s reactor design, the overall planning and philosophies that go into ensuring that every aspect of the physical design will consider safety, security and safeguards under all scenarios it may encounter during its lifecycle.

design-basis accident
Accident conditions for which a reactor facility is designed according to established design criteria, and for which damage to the fuel and the release of radioactive material are kept within regulated limits.

mitigation
Measures aimed at limiting the scale of core damage, preventing interaction of the molten material with containment structures, maintaining containment integrity, and minimizing off-site releases, in the event of an accident.

moderator
A material that reduces neutron energy by scattering without appreciable capture. Materials of prime concern are those containing light nuclei with large scattering cross sections and relatively low absorption cross sections.

normal operation Operation within specified operational limits and conditions, including start-up, power operation, shutdown, maintenance, testing and refuelling.

operational limits and conditions
A set of rules setting forth parameter limits and the functional capability and performance levels of equipment and personnel, which are approved by the regulatory body for safe operation of an authorized facility. This set of limits and conditions is monitored by or on behalf of the operator and can be controlled by the operator.

safety case
An integrated collection of arguments and evidence to demonstrate the safety of a facility. A safety case will normally include a safety assessment, but could also typically include information (including supporting evidence and reasoning) on the robustness and reliability of the safety assessment and the assumptions made therein.

safety function
A specific purpose that must be accomplished by a structure, system or component for safety, including those necessary to prevent accident conditions and to mitigate the consequences of accident conditions.

safety system
Systems provided to ensure the safe shutdown of the reactor or the residual heat removal from the core, or to limit the consequences of anticipated operational occurrences and design-basis accidents.

severe accident
Accident conditions more severe than a design-basis accident and involving significant core degradation.

severe accident management (SAM) program
A program that establishes both of the following:

• the actions to be taken to prevent severe damage to the reactor core, to mitigate the consequences of the core damage should it occur, and to achieve a safe, stable state of the reactor over the long term
• the preparatory measures necessary for implementation of such actions

shutdown
A subcritical reactor state with a defined margin to prevent a return to criticality without external actions.

single failure
A failure that results in the loss of capability of a system or component to perform its intended function(s) and any consequential failure(s) that result from it.

single failure criterion
A criterion (or requirement) applied to a system such that it will be capable of performing its task in the presence of any single failure.

smart buyer (intelligent customer)
An organization that has a clear understanding and knowledge of the product or service being supplied. In the context of nuclear safety, the organization knows what is required, fully understands the need for a vendor’s services, specifies requirements, supervises the work and technically reviews the output before, during and after implementation.

h2 id="ref">References

1. Canadian Nuclear Safety Commission (CNSC), REGDOC-2.5.2, Design of Reactor Facilities: Nuclear Power Plants, 2014.
2. CNSC, RD-367, Design of Small Reactors, 2011.
3. CNSC, RD/GD-369, Licence Application Guide, Licence to Construct a Nuclear Power Plant, 2011.
4. CNSC, REGDOC-2.4.1, Deterministic Safety Analysis, 2014.
5. CNSC, REGDOC-2.4.2, Probabilistic Safety Assessment (PSA) for Nuclear Power Plants, 2005.
6. CNSC, G-129, Keeping Radiation Exposures and Doses "As Low As Reasonably Achievable (ALARA)", 2004.
7. CNSC, REGDOC-2.3.2, Accident Management, Version 2, 2015.
8. CNSC, G-219, Decommissioning Planning for Licensed Activities, 2000.
9. CSA Group, CSA N285.08/N285.6 Series-08, General requirements for pressure-retaining systems and components in CANDU nuclear power plants / Material Standards for reactor components for CANDU nuclear power plants, 2008.
10. CSA Group, CSA N287.1-14 (2014), General requirements for concrete containment structures for nuclear power plants, 2014.
11. CSA Group, CSA N293-12, Fire protection for nuclear power plants.
12. CSA Group, CSA N286-12, Management system requirements for nuclear facilities.
13. CSA Group, CSA N289.1, General requirements for seismic design and qualification of CANDU nuclear power plants.
14. National Research Council, National Model Construction Codes, NRCC 53301S, The National Building Code of Canada, 2010.
15. National Research Council, National Model Construction Codes, NRCC 47667, The National Fire Code of Canada, 2010.

CNSC Regulatory Document Series

Facilities and activities within the nuclear sector in Canada are regulated by the Canadian Nuclear Safety Commission (CNSC). In addition to the Nuclear Safety and Control Act and associated regulations, these facilities and activities may also be required to comply with otherregulatory instruments such as regulatory documents or standards.

Effective April 2013, the CNSC's catalogue of existing and planned regulatory documents has been organized under three key categories and twenty-five series, as set out below. Regulatory documents produced by the CNSC fall under one of the following series:

• 1.0 Regulated facilities and activities
• Series 1.1 Reactor facilities
  • 1.2 Class IB facilities
  • 1.3 Uranium mines and mills
  • 1.4 Class II facilities
  • 1.5 Certification of prescribed equipment
  • 1.6 Nuclear substances and radiation devices
• 2.0 Safety and control areas
• Series 2.1 Management system
  • 2.2 Human performance management
  • 2.3 Operating performance
  • 2.4 Safety analysis
  • 2.5 Physical design
  • 2.6 Fitness for service
  • 2.7 Radiation protection
  • 2.8 Conventional health and safety
  • 2.9 Environmental protection
  • 2.10 Emergency management and fire protection
  • 2.11 Waste management
  • 2.12 Security
  • 2.13 Safeguards and non-proliferation
  • 2.14 Packaging and transport
• 3.0 Other regulatory areas
• Series 3.1 Reporting requirements
  • 3.2 Public and Aboriginal engagement
  • 3.3 Financial guarantees
  • 3.4 Commission proceedings
  • 3.5 CNSC processes and practices
  • 3.6 Glossary of CNSC terminology

Note: The regulatory document series may be adjusted periodically by the CNSC. Each regulatory document series listed above may contain multiple regulatory documents. For the latest list of regulatory documents, visit the CNSC's website.
