National Sealed Source Registry and Sealed Source Tracking System Report for 2020

Introduction

Sealed sources are radioactive nuclear substances encased in a sealed capsule or in a cover to which the substance is bonded. A source’s capsule or cover is strong enough to prevent contact with, or dispersion of, the substance under the conditions for which the capsule or cover is designed. Sealed sources can be used for a variety of activities, including medical, industrial, commercial, and academic and research applications. An inventory of sealed sources within Canada is housed in the National Sealed Source Registry (NSSR), which was established in 2006 to conform to the International Atomic Energy Agency (IAEA) Code of Conduct on the Safety and Security of Radioactive Sources. The NSSR is used to maintain an accurate and secure inventory of sealed sources in Canada, with a particular focus on those classified as high risk.

The Sealed Source Tracking System (SSTS) is a secure information-management system used in conjunction with the NSSR to track new and existing high-risk sources within Canada. Source transfers done online through the SSTS update and populate the NSSR so that the information is as current as the licence reporting allows. The timelines to report the receipt of a source (following either a domestic transfer or an import) is within 2 days of receipt. An export must be reported 7 days in advance of the export. As for a domestic transfer, the reporting timelines were modified in December 2020. Prior to that, some licensees had to provide a 7-day advance notice prior to a domestic transfer and others had to provide a 24-hour advance notice. The licence condition was uniformized in December 2020 so that all licensees must now provide a 24-hour advance notice prior to a domestic transfer. The CNSC places particular emphasis on capturing data on high-risk sources, with the NSSR housing detailed information such as the source serial number, isotope, activity, and current location. Information on moderate- and low-risk sources is updated annually using the inventory data included in licensees’ annual compliance reports (ACRs) and validated by the CNSC for accuracy and consistency.

Categories of sealed sources

Sealed sources are classified by the IAEA into five different categories:

• Category 1: Very high risk (risk-significant)
• Category 2: High risk (or risk-significant)
• Category 3: Moderate risk
• Category 4: Low risk
• Category 5: Very low risk

For more information on how sealed sources are categorized, consult the CNSC website.

Summary of Sealed Source Inventory

By the end of 2020, the NSSR contained information on 143,705 radioactive sealed sources in Canada. The SSTS actively tracks Category 1 and 2 sources. In 2020, 6,149 Category 1 and 70,247 Category 2 sources were tracked. The remaining 67,309 sealed sources in the NSSR were Category 3, 4 or 5, which are not subject to mandatory tracking for every movement. Figure 1 shows the total number of sealed sources, as well as the number of sealed sources in each category, that were accounted for in Canada on December 31, 2020.

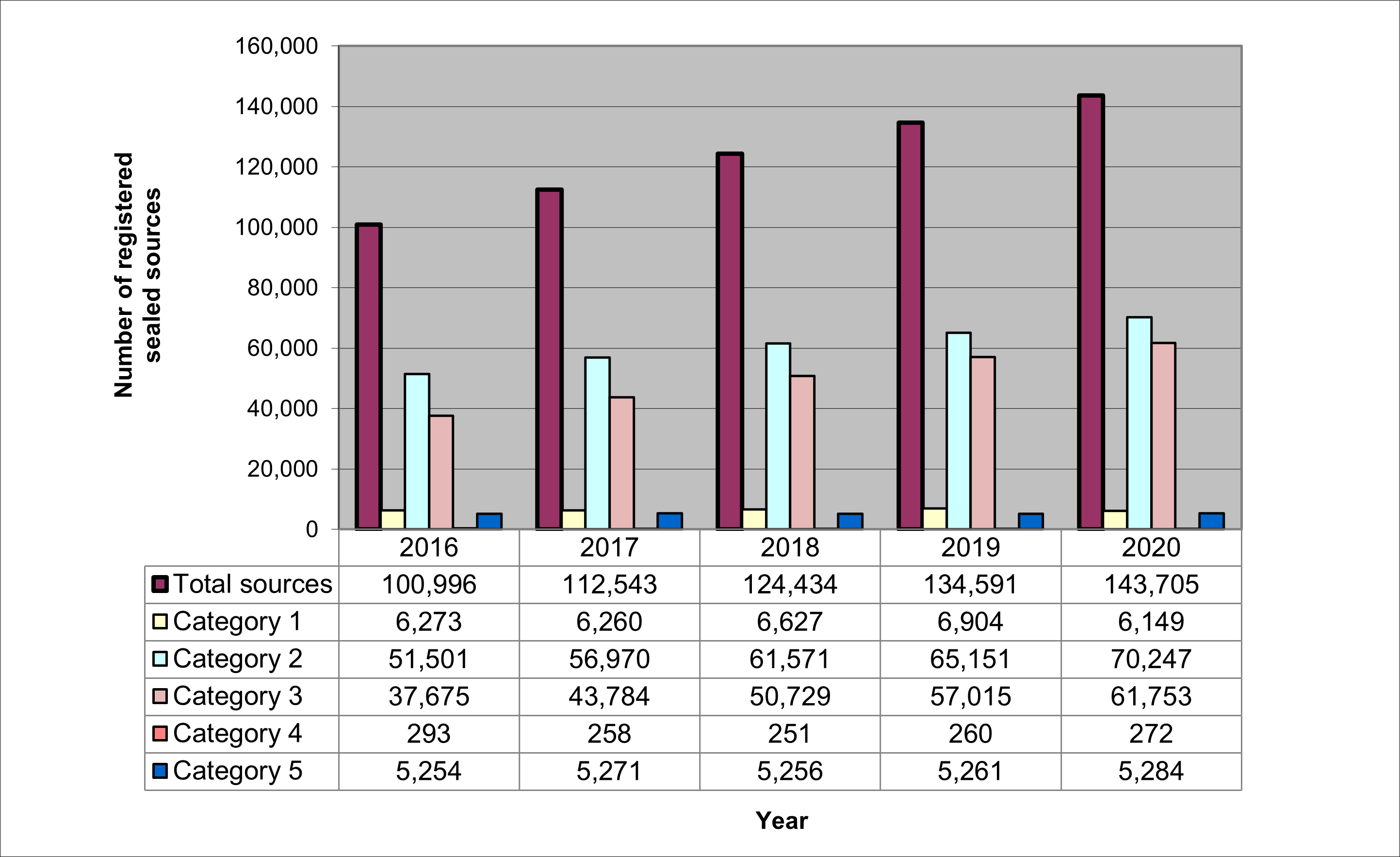

Figure 1: Text version

A graph and table show the total number of sealed sources, as well as the number of sealed sources in each category, that were accounted for in the National Sealed Source Registry from 2016 to 2020.

There were 100,996 total sealed sources accounted for in the National Sealed Source Registry in 2016: 6,273 Category 1 sealed sources, 51,501 Category 2 sealed sources, 37,675 Category 3 sealed sources, 293 Category 4 sealed sources, and 5,254 Category 5 sealed sources.

There were 112,543 total sealed sources accounted for in the National Sealed Source Registry in 2017: 6,260 Category 1 sealed sources, 56,970 Category 2 sealed sources, 43,784 Category 3 sealed sources, 258 Category 4 sealed sources, and 5,271 Category 5 sealed sources.

There were 124,434 total sealed sources accounted for in the National Sealed Source Registry in 2018: 6,627 Category 1 sealed sources, 61,571 Category 2 sealed sources, 50,729 Category 3 sealed sources, 251 Category 4 sealed sources, and 5,256 Category 5 sealed sources.

There were 134,591 total sealed sources accounted for in the National Sealed Source Registry in 2019: 6,904 Category 1 sealed sources, 65,151 Category 2 sealed sources, 57,015 Category 3 sealed sources, 260 Category 4 sealed sources, and 5,261 Category 5 sealed sources.

There were 143,705 total sealed sources accounted for in the National Sealed Source Registry in 2020: 6,149 Category 1 sealed sources, 70,247 Category 2 sealed sources, 61,753 Category 3 sealed sources, 272 Category 4 sealed sources, and 5,284 Category 5 sealed sources.

Performance measures and verification

To gauge the effectiveness of the SSTS and verify the accuracy of the data in the system, CNSC inspectors physically cross-reference SSTS data against licensees’ actual inventory of sealed sources. Routine CNSC compliance inspections include the verification of sealed source tracking information. Inconsistencies are immediately addressed to ensure accuracy in the data.

In 2020, CNSC inspectors verified licensees’ compliance with sealed source tracking requirements during 53 inspections. Of these, licensees were compliant in 92% of cases (49 inspections). The 4 licensees that were initially found to be non-compliant have adequately addressed the issues identified during the inspections. The non-compliances were related to reporting period issues, along with mismatches between physical inventories and what was registered in the NSSR/SSTS.

For more information on inspection results of Canadian licensees using nuclear substances relative to doses to workers, radiation protection, operating performance and sealed source security, refer to the annual Regulatory Oversight Report on the Use of Nuclear Substances in Canada.

Event mitigation

Licensees must immediately report lost or stolen nuclear substances to the CNSC and must also submit descriptions of any actions taken or proposed to recover missing nuclear substances. The CNSC investigates every such event and informs local, national, and international stakeholders who may assist with recovery. A list of events involving sealed sources can be found in the Lost or Stolen Sealed Sources and Radiation Devices Report.

The International Nuclear and Radiation Events Scale (INES) is a tool for communicating the safety significance of nuclear and radiological events to technical communities and the public. Every event reported from the commercial, academic and research, industrial, and medical sectors is classified in accordance with the INES, based on its safety significance rating. Four events involving lost, stolen or found sources in 2020 were rated as INES Level 1. Four events were rated as Level 0, which are considered below scale and have no safety significance.

Figure 2: Text version

A chart shows the breakdown of INES ratings. Below scale / Level 0 has no safety significance, Level 1 is an anomaly, Level 2 is an incident, Level 3 is a serious incident, Level 4 is an accident with local consequences, Level 5 is an accident with wider consequences, Level 6 is a serious accident, and Level 7 is a major accident.

The levels, excluding Level 0, are broken into 2 sections; Levels 1, 2, and 3 are incidents while Levels 4 through 7 are accidents.

A total of 11 sealed sources were involved in 8 events in 2020. One Category 4 source was stolen and not recovered. Four Category 4 sources were stolen and recovered within 2 days of the thefts. Four Category 5 sources were lost and not recovered. Two Category 4 sources were recovered after being reported as stolen in 2013.

Figures 3 and 4 present data on lost and stolen sources in Canada from 2016 to 2020.

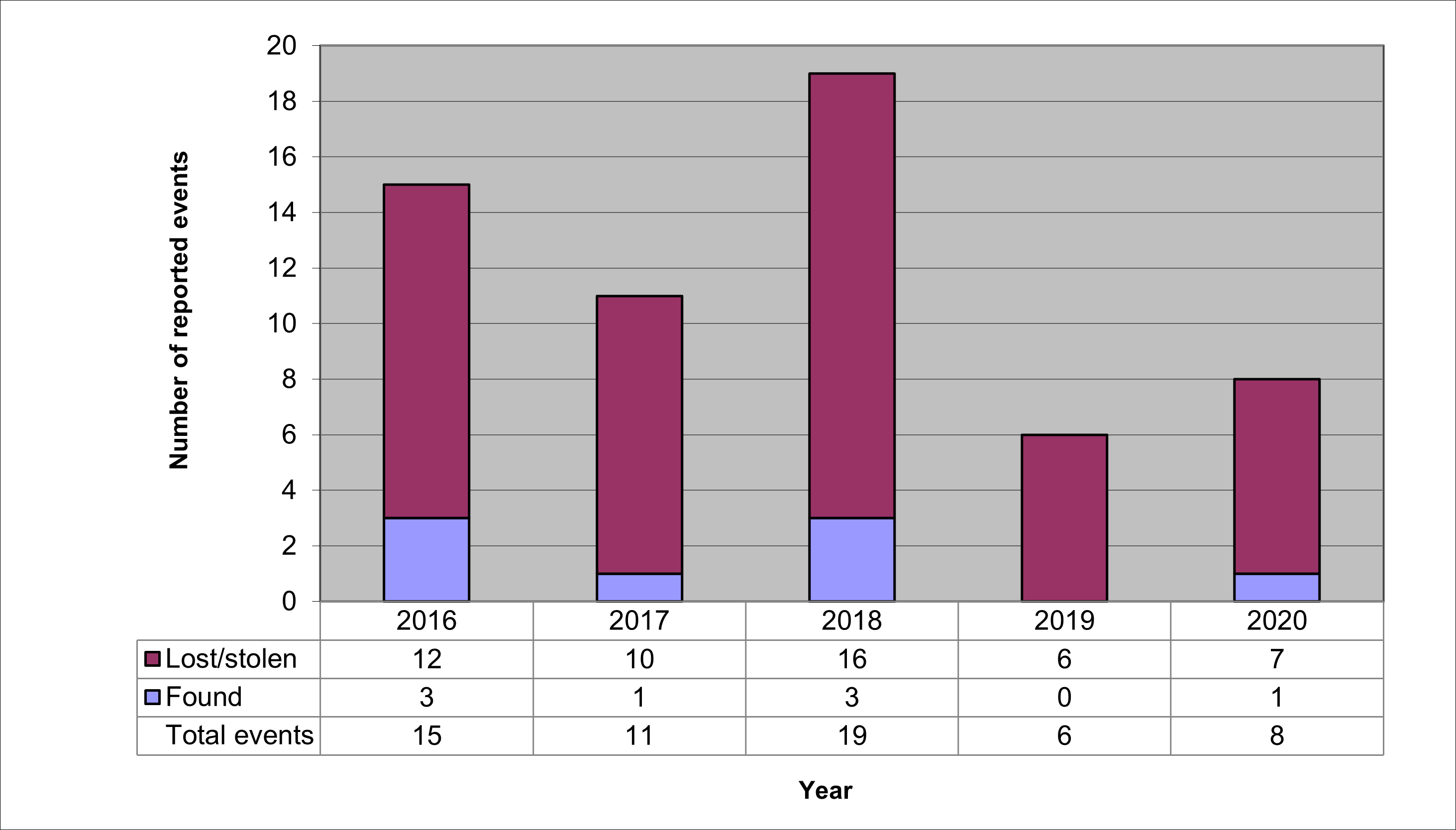

Figure 3: Text version

A graph and table show the total number of events involving found, lost, and stolen sealed sources, the number of events involving found sealed sources, and the number of events involving lost or stolen sealed sources, that were reported from 2016 to 2020.

There were 15 events reported in 2016: 3 involving found sealed sources and 12 involving lost or stolen sealed sources.

There were 11 events reported in 2017: 1 involving found sealed sources and 10 involving lost or stolen sealed sources.

There were 19 events reported in 2018: 3 involving found sealed sources and 16 involving lost or stolen sealed sources.

There were 6 events reported in 2019: none involving found sealed sources and 6 involving lost or stolen sealed sources.

There were 8 events reported in 2020: 1 involving found sealed sources and 7 involving lost or stolen sealed sources.

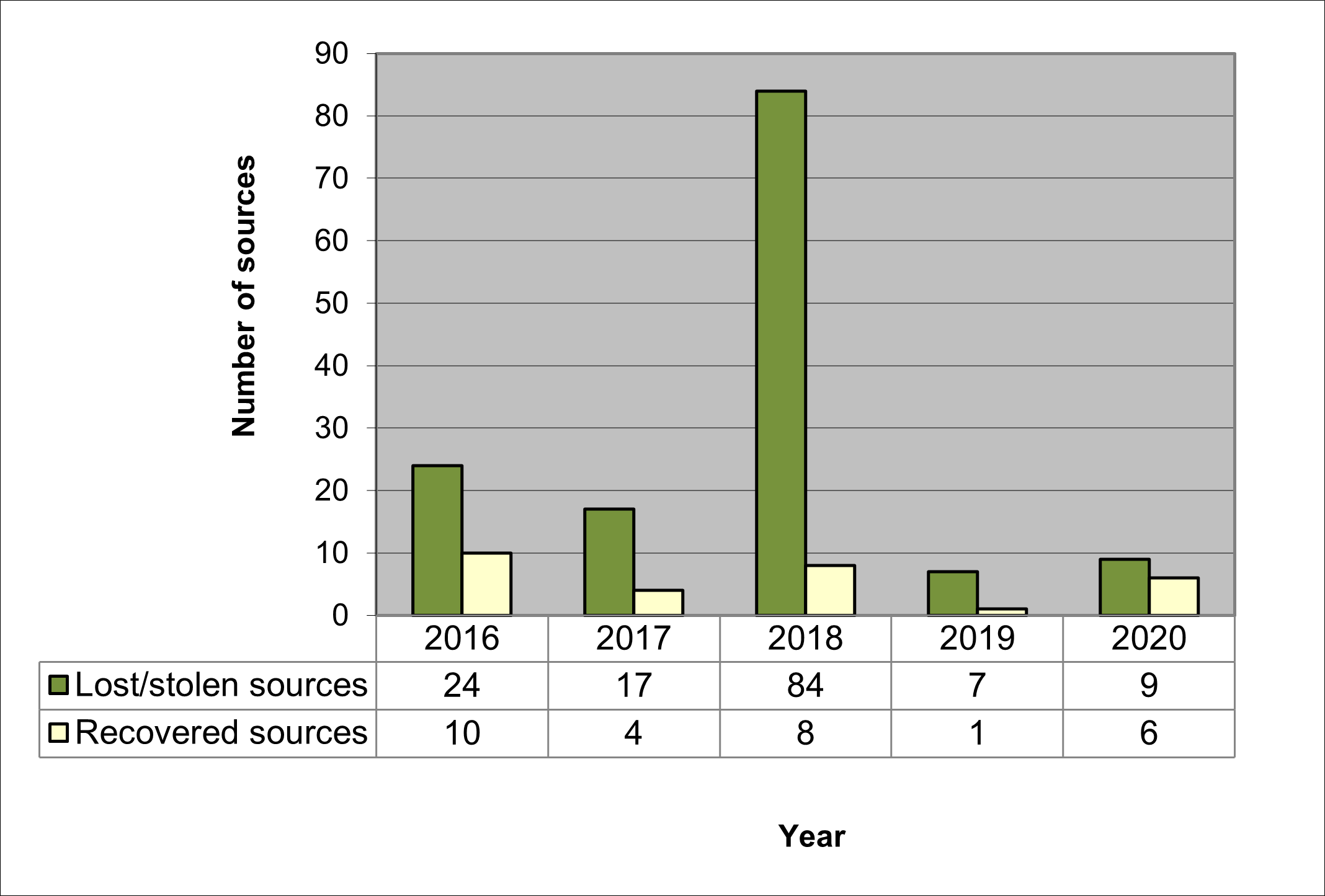

Figure 4: Text version

A graph and table show the number of lost or stolen sealed sources and the number of found or recovered sealed sources that were reported from 2016 to 2020.

There were 24 lost or stolen sealed sources and 10 found or recovered sealed sources reported in 2016.

There were 17 lost or stolen sealed sources and 4 found or recovered sealed sources reported in 2017.

There were 84 lost or stolen sealed sources and 8 found or recovered sealed sources reported in 2018.

There were 7 lost or stolen sealed sources and 1 found or recovered sealed sources reported in 2019.

There were 9 lost or stolen sealed sources and 6 found or recovered sealed sources reported in 2020.

Transaction statistics

The NSSR is populated by licensees reporting their transactions via the online SSTS interface or by other means such as fax or email. Figures 5, 6, and 7 show transactions entered in the SSTS in 2020, statistics for import and export of sealed sources, and the percentage of online SSTS transactions from 2016 to 2020, respectively. The CNSC publishes SSTS transaction data as part of the Government of Canada’s Open Data initiative.

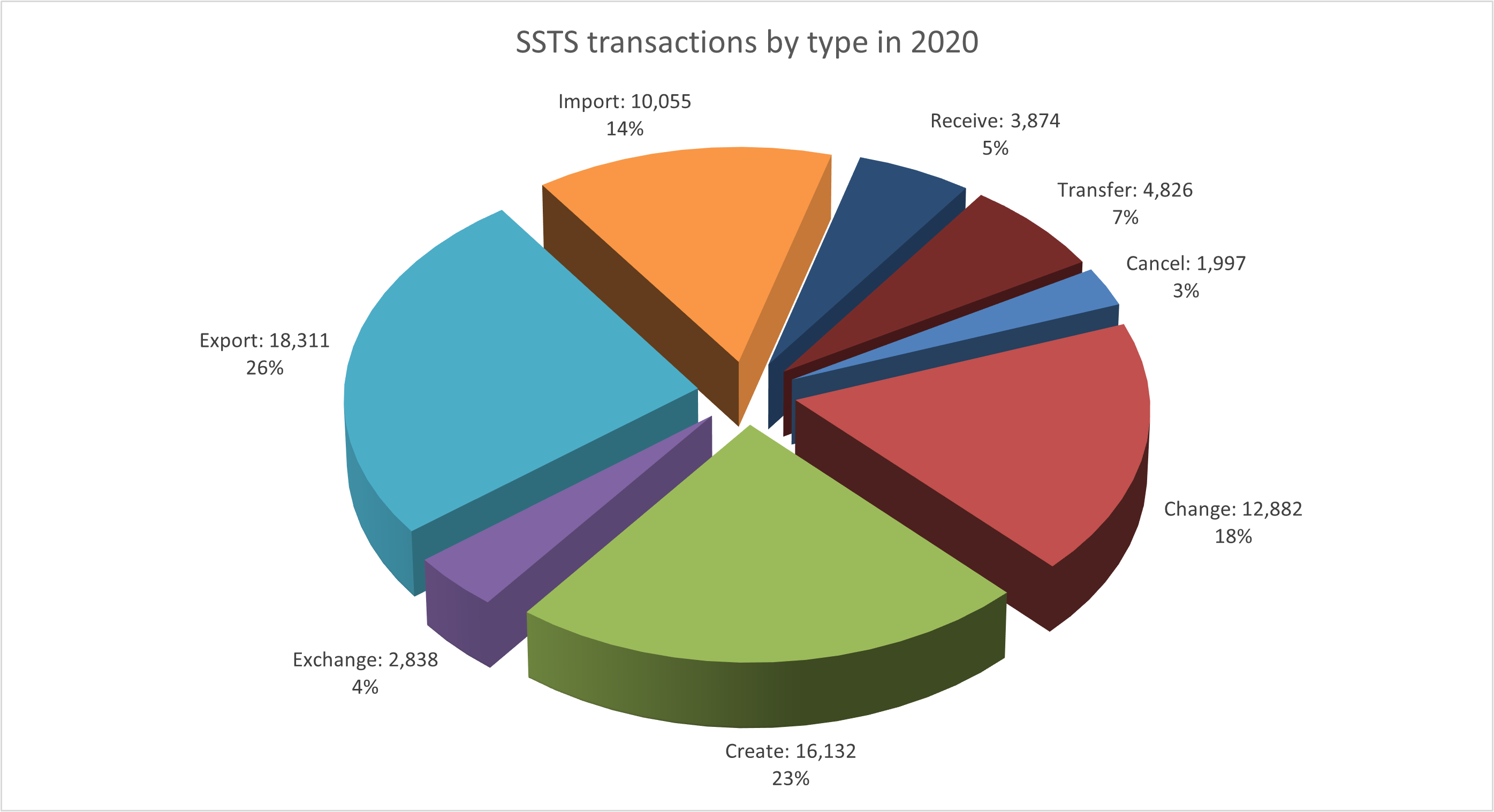

Figure 5: Text version

A chart shows total number and the number of each type of SSTS transaction in 2020. Of the total 70,915 SSTS transactions in 2020, 1,997 or 3% were Cancel, 12,882 or 18% were Change, 16,132 or 23% were Create, 2,838 or 4% were Exchange, 18,311 or 26% were Export, 10,055 or 14% were Import, 3,874 or 5% were Receive, and 4,826 or 7% were Transfer.

A total 70,915 transactions were recorded in 2020.

Users of nuclear substances in Canada routinely import and export sealed sources in accordance with their licences.

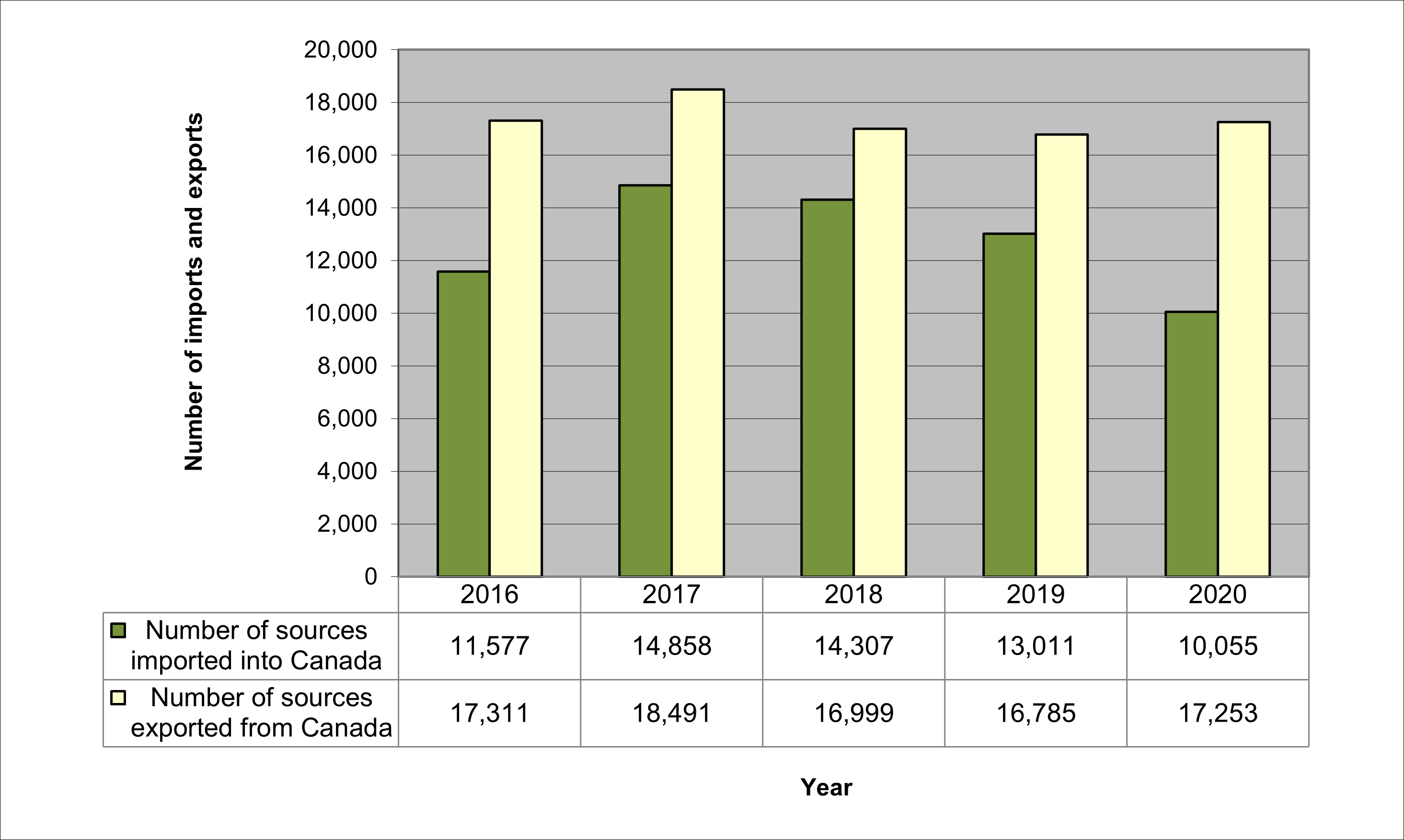

Figure 6: Text version

A graph and table show the number of sealed sources imported into Canada and exported from Canada from 2016 to 2020.

There were 11,577 sealed sources imported and 17,311 sealed sources exported in 2016.

There were 14,858 sealed sources imported and 18,491 sealed sources exported in 2017.

There were 14,307 sealed sources imported and 16,999 sealed sources exported in 2018.

There were 13,011 sealed sources imported and 16,785 sealed sources exported in 2019.

There were 10,055 sealed sources imported and 17,253 sealed sources exported in 2020.

Licensees report transactions online (through the SSTS Web portal) or via email or fax to the CNSC. Transactions reported to the CNSC via email or fax are entered into the system by CNSC staff on behalf of the licensee.

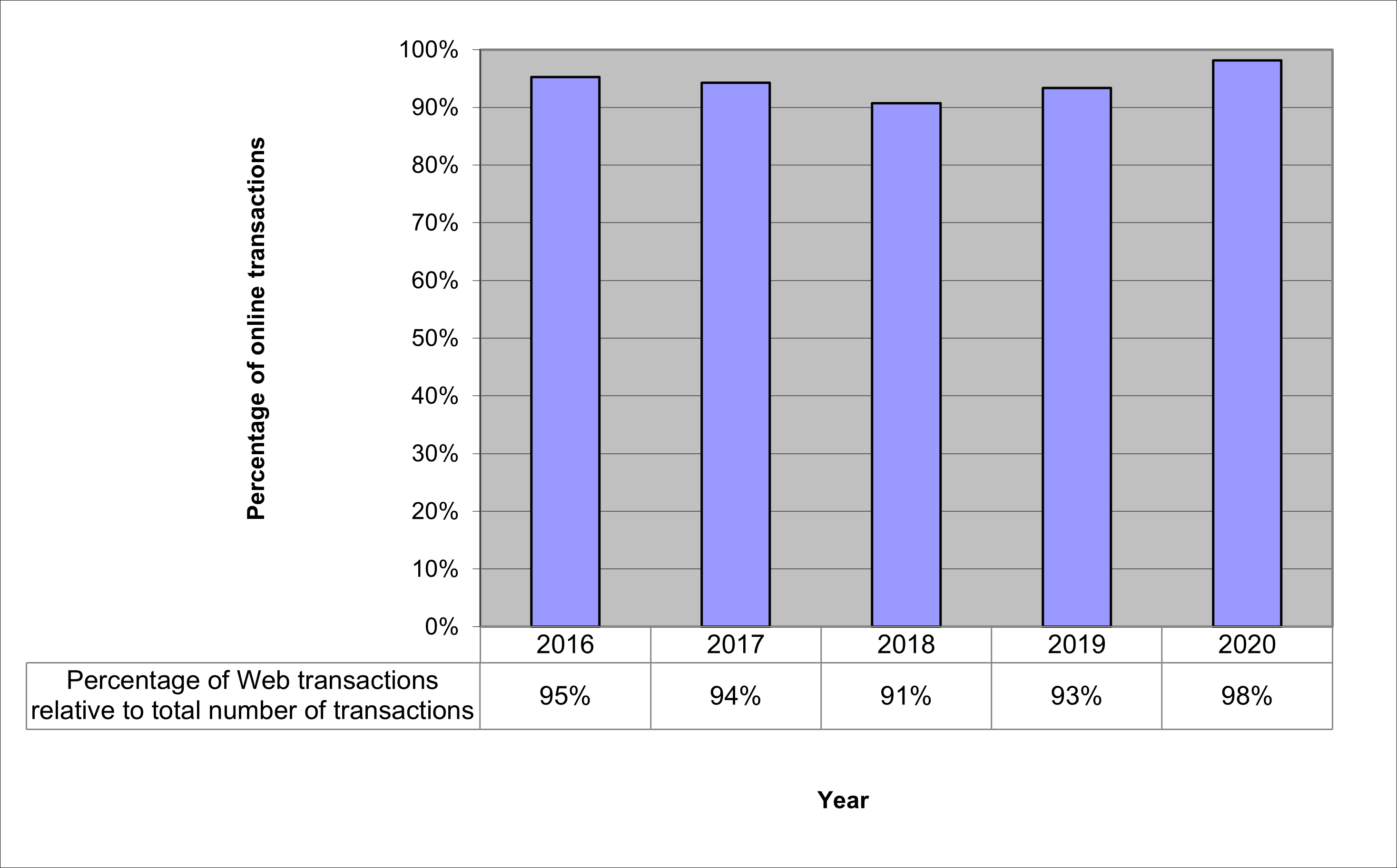

Figure 7: Text version

A graph and table show the percentage of SSTS web transactions relative to total SSTS transactions from 2016 to 2020.

95% of SSTS transactions were performed online in 2016.

94% of SSTS transactions were performed online in 2017.

91% of SSTS transactions were performed online in 2018.

93% of SSTS transactions were performed online in 2019.

98% of SSTS transactions were performed online in 2020.

Conclusion

The licensees’ continued use of the SSTS indicate that its implementation, as well as that of the NSSR, has been effective, and that Canada is maintaining its commitment to the Code of Conduct on the Safety and Security of Radioactive Sources.
